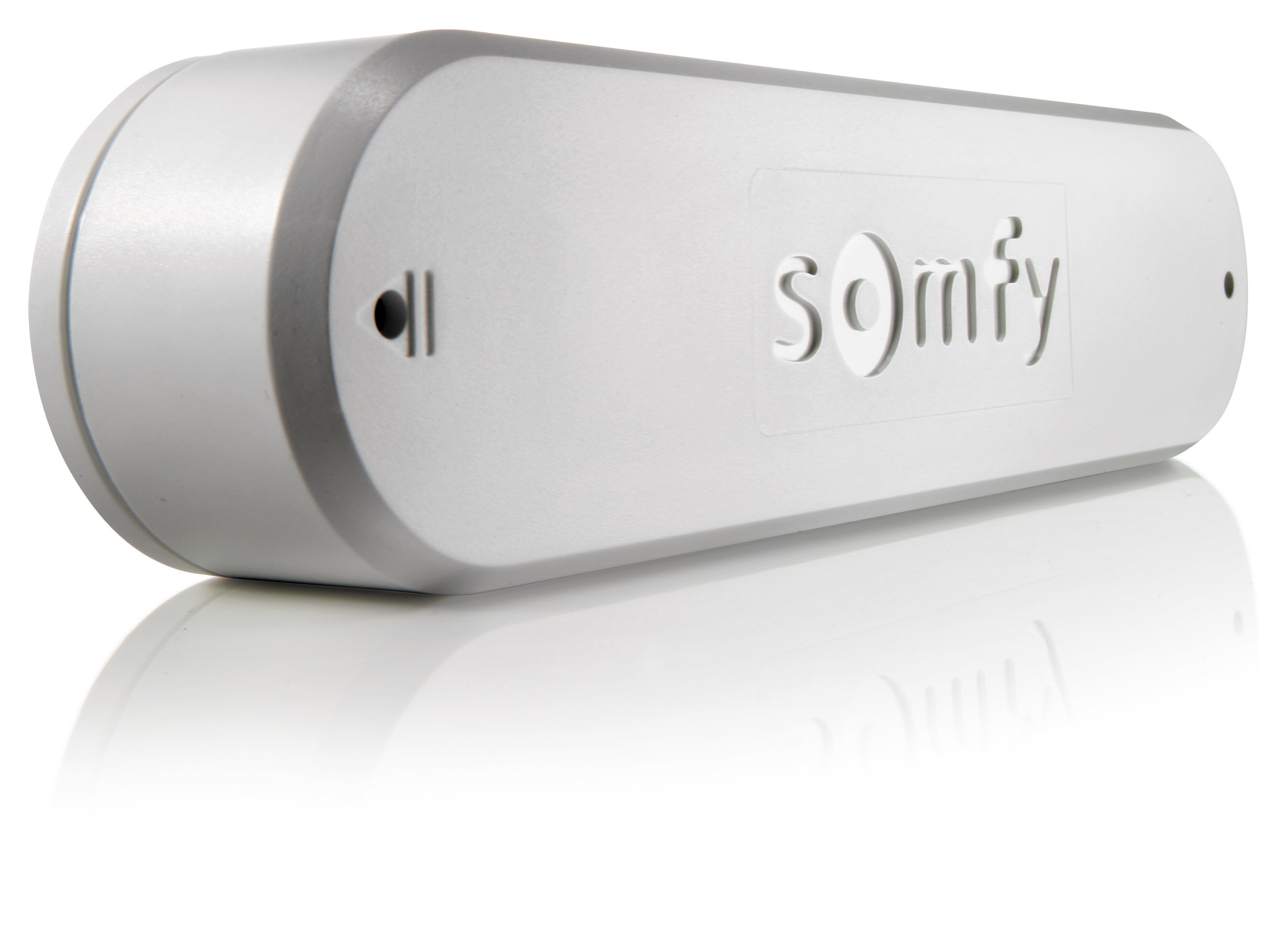

**Somfy Eolis 3D WireFre RTS Wind Sensor – Smart Wireless Wind Protection**
The **Somfy Eolis 3D WireFre RTS Wind Sensor** provides **advanced wind detection** for awnings and shutters, featuring **wireless RTS technology** for easy installation and automatic protection.
### **Key Features:**
- **3D Wind Detection** – Measures speed and direction in all axes
- **WireFree RTS Technology** – No wiring needed (100m range)
- **Automatic Protection** – Triggers motor retraction at adjustable wind speeds
- **IP55 Rated** – Weatherproof for outdoor durability
- **Solar-Powered** – Integrated solar panel with battery backup
- **Easy Installation** – Mounts on walls, roofs, or poles
- **Compatible with RTS Motors** – Works with Somfy RTS receiver systems
### **Technical Specifications:**
- **Wind Speed Range:** 10–110 km/h (adjustable threshold)
- **Wireless Range:** Up to 100m line-of-sight
- **Power Supply:** Solar + rechargeable battery (5-year lifespan)
- **Operating Temp:** -30°C to +70°C
- **Dimensions:** 135 x 135 x 65mm
### **Ideal For:**
✔ Retractable awnings
✔ Automatic shutters
✔ Sun protection systems
✔ Smart home weather protection
**Upgrade to wireless, maintenance-free wind protection!**
*(Word count: ~150)*
---
**Why Choose This Sensor?**
- **No Wiring** – Simplifies installation
- **Smart Response** – Adjustable sensitivity
- **All-Weather Reliability** – Built for harsh conditions
*(Additional word count: ~30)*
**Somfy Eolis 3D WireFre RTS Wind Sensor – Technical Specifications**
### **Wind Measurement Specifications:**
- **Wind Speed Range:** 10–110 km/h (6–68 mph)
- **Measurement Accuracy:** ±5% (20–80 km/h range)
- **Detection Method:** 3-axis ultrasonic anemometer
- **Threshold Adjustment:** 5 km/h increments (user-configurable)
- **Response Time:** <3 seconds to trigger
### **Wireless Communication:**
- **Technology:** RTS (Radio Technology Somfy)
- **Frequency:** 433.42 MHz (EU) / 868 MHz (regional variants)
- **Range:** Up to 100m line-of-sight (30m typical with obstacles)
- **Encryption:** Rolling code security
- **Compatible Receivers:** All Somfy RTS wind interfaces
### **Power Specifications:**
- **Primary Power:** 1.5W monocrystalline solar panel
- **Backup Power:** Rechargeable Li-ion battery (3.7V, 1200mAh)
- **Battery Life:** Up to 5 years (typical use)
- **Low Power Mode:** Activates at <10% battery
### **Physical Specifications:**
- **Dimensions:** 135 × 135 × 65mm (L×W×H)
- **Weight:** 450g
- **Mounting Options:**
- Wall mount (included bracket)
- Pole mount (Ø25–50mm)
- Roof mount
- **Material:** UV-resistant polycarbonate
### **Environmental Ratings:**
- **IP Rating:** IP55 (dust protected, water jets)
- **Operating Temperature:** -30°C to +70°C
- **Storage Temperature:** -40°C to +85°C
- **Wind Resistance:** Rated for 150 km/h gusts
### **Installation Specifications:**
- **Mounting Height:** 2–6m above ground
- **Orientation:** Self-aligning (auto compass calibration)
- **Tools Required:** Phillips screwdriver (included screws)
### **Certifications & Compliance:**
- **CE Marked**
- **RoHS Compliant**
- **RED 2014/53/EU**
- **EN 60730-1 Safety Standard**
### **Package Includes:**
1 × Eolis 3D sensor
1 × Wall mount bracket
2 × Screw anchors
1 × Installation guide
*(Word count: ~250)*
**Note:** Requires compatible RTS receiver (sold separately). Optimal performance requires unobstructed wind exposure.
