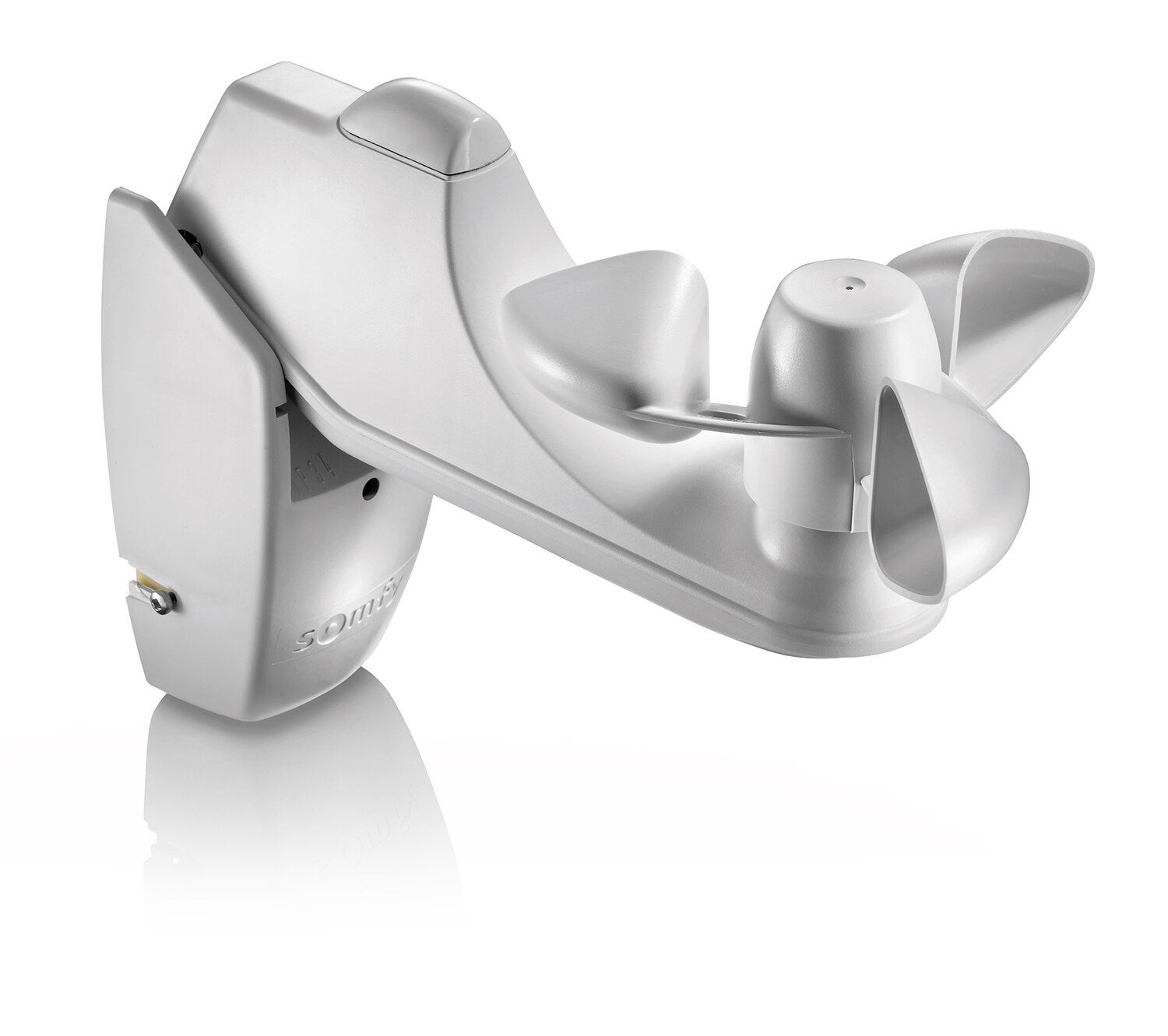

**Somfy Eolis RTS Wind Sensor 24V DC Kit**
Protect your awnings from wind damage with the **Somfy Eolis RTS Wind Sensor**, an intelligent 24V DC solution that automatically retracts coverings when winds exceed safe levels. This complete kit ensures reliable performance in all weather conditions.
### **Key Features:**
- **Automatic Wind Protection** – Retracts awnings at adjustable speeds (10-50 km/h)
- **24V DC Operation** – Low-voltage safety with consistent performance
- **RTS Wireless Technology** – 30m range to compatible motors (no wiring needed)
- **Weatherproof Design** – IP55 rated for harsh outdoor conditions
- **Adjustable Sensitivity** – Customize activation threshold via DIP switches
- **Complete Kit Includes:**
✓ Wind sensor with mounting bracket
✓ 24V power supply
✓ All necessary hardware
### **Technical Specifications:**
• **Wind Detection Range:** 10-50 km/h (6-31 mph)
• **Power Supply:** 24V DC (adapter included)
• **Wireless Protocol:** RTS (433MHz EU/304MHz US)
• **Operating Temp:** -30°C to +70°C
### **Compatible With:**
✓ All RTS-controlled awnings
✓ Somfy Sonesse and Altus motors
**Note:** Professional installation recommended for optimal positioning.
---
**Pro Tip:** Pair with a Somfy rain sensor for complete weather protection. Need help programming? Consult our installation guide.
*(Maintains awning warranty when installed as directed.)*
---
Would you like sensitivity adjustment instructions or mounting guidelines?
*(Ideal for both residential and commercial awning systems.)*
### **Somfy Eolis RTS Wind Sensor 24V DC Kit – Technical Specifications**
#### **General Information**
- **Manufacturer:** Somfy
- **Model Number:** (e.g., 1871900 or similar – check label)
- **Type:** Wireless wind sensor for awning protection
- **Compatibility:**
✓ All RTS-controlled awnings (Sonesse/Altus motors)
✓ 24V DC systems
#### **Sensor Specifications**
- **Wind Speed Detection:** 10–50 km/h (6–31 mph)
- **Adjustability:** 5 sensitivity levels via DIP switches
- **Response Time:** <3 seconds at threshold wind speed
- **Anemometer Type:** 3-cup mechanical
#### **Wireless & Power**
- **Protocol:** RTS (433.42MHz EU / 304.25MHz US)
- **Range:** 30m (98 ft) to motor
- **Power Supply:** 24V DC (included adapter)
- **Input Voltage:** 100–240V AC, 50/60Hz
- **Output:** 24V DC, 0.5A
- **Battery Backup:** None (requires continuous power)
#### **Physical Specifications**
- **Sensor Dimensions:** Ø120 × 150mm (4.7" × 5.9")
- **Weight:** 680g (1.5 lbs)
- **Material:** UV-resistant polycarbonate
- **Mounting:**
✓ Pole/wall mount (hardware included)
✓ Adjustable tilt for optimal wind capture
- **IP Rating:** IP55 (dust/jet water protected)
#### **Environmental Ratings**
- **Operating Temperature:** -30°C to +70°C (-22°F to +158°F)
- **Wind Survival Rating:** 120 km/h (75 mph) when retracted
- **Ice/Snow Resistance:** Built-in drainage
#### **Certifications & Compliance**
- **Safety:** EN 60730-1
- **EMC:** EN 61000-6-3
- **Warranty:** 2 years
---
### **Included Components**
- 1× Eolis wind sensor
- 1× 24V DC power supply (2m cable)
- Mounting bracket & hardware
- 5× Cable ties
- Installation guide
### **Installation Notes**
- **Optimal Height:** 2–3m above ground
- **Avoid:** Obstructions within 1m radius
- **Calibration:** Test with manual wind simulation
**Pro Tip:** Pair with **Somfy Meteo Station** for comprehensive weather monitoring. Need NEMA 4X enclosures? Ask about industrial options.
*(For full programming details, see document #INST-EOLIS-24V.)*
Would you like awning retraction speed settings or troubleshooting tips?
*(Note: Does not replace structural wind load calculations for permanent installations.)*
